RO101-SV offers safe, good-tasting water at your
fingertips!
It meets all your water quality needs. With 80
gallons of clear, refreshing water that is not
only healthy to drink, but good for cooking.
RO101SV system provides safe, pure water using
Reverse Osmosis Technology. It is one of the
finest units in its class. It's capable of
removing over 95% of total dissolved solids, +99%
of all organics and +99% of all bacteria.

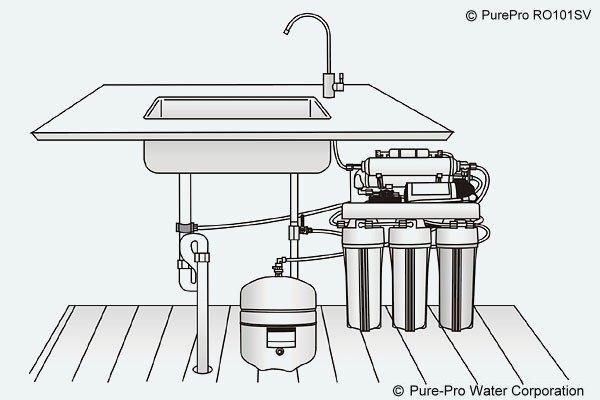

This system hides away under your sink and puts
healthy great-tasting water at your fingertips. It
meets all your water quality needs. Our RO101SV
comes complete with a NSF certified 3.2 gallons
water storage tank and all the necessary fittings,
installation kits, extra color 1/4" tubing, and a
long-reach chrome faucet. We don't know of any
other system at our price that can approaches its
performance.
Features:
3.2 Gallons NSF Standards Water Storage Tank.
FDA Approved Polypropylene Made Flat Cap Housing
(double o'ring).
Safety approval: TUV (EN60950) & CE MARK
Automatic Shut-off Valve
Flow Restrictor, Stainless Steel Check Valve.
European design attractive faucet
Feed water connector & deliver valve
Drain Saddle Valve.
Four Color Coded 1/4 inch Tubing for System
Connection
Completely Assembled & Water leaking testing
100% Factory Tested and Sterilized Ready for
Installation.
Installation Instruction.
RO101SV - 5 stage complete filter system
(Stage 1) 5 Micron Sediment Filter :
With only five micron rating. It is effective in
removing dirt, rust and sand particles.
(Stage 2) Granular Activated Carbon Filter:
It takes out 99% of the chlorine and organic
chemicals. It provides enhanced reduction of
taste, odor, and color.
(Stage 3) 1 Micron Sediment Filter :
With only 1 micron rating, provides effective
filtration to protect your membrane. It provides
for improved membrane performance up to 95% of TDS
rejection.
(Stage 4) Reverse Osmosis Membrane:
A thin film composite (TFC) high quality membrane
that processes 80 gallons per day. It remove the
following hard water contaminants that may be
present in your water: lead, cooper, barium,
chromium, mercury, sodium, cadmium, fluoride,
nitrite, nitrate, and selenium.
(Stage 5) Post Carbon filter:
This carbon post filter removes objectionable
tastes and odors to enhance the quality of your
drinking water. We are using NSF approved post
carbon to guarantee the taste of water.
--------------------------------------------------------------------------------
Specifications:
Membrane: 80 GPD / 302 LPD
With a transformer, available in 110Volt, 220Volt
or 240Volt (50/60Hz).
Safety approval: TUV (EN60950) & CE MARK
Operation pressure: 5 -80 psi
Dimensions: (cm) 37 (L) x 45(H) x 20 (W) - system
(cm) 28 (L) x 28(W) x 35 (H)- tank
Weight: 12 kg - system
4 kg - tank
